Location: Mumbai, India (Mumbai Metro Rail)
Project Type: Rail/Metro

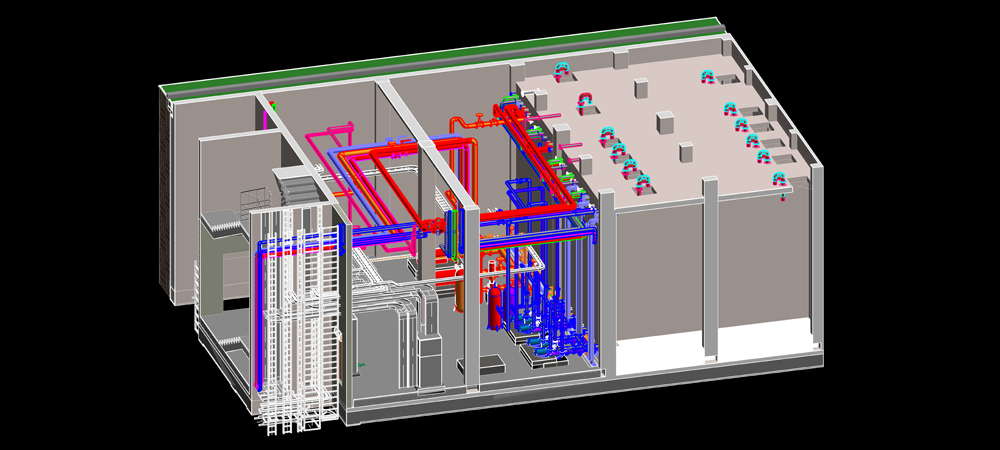

Project Description: We worked and successfully delivered 2 Metro stations for Mumbai Metro rail project for the Underground Metro stations, which had 4 underground levels. Delivered the full BIM MEP model for the development. We worked with the MEP consultants on the project to provide them with fully coordinated MEP BIM model for the development. We delivered fully coordinated 2D MEP drawings sets and shop drawings for mechanical systems, etc... Clash detection was carried out with structure and other services. We work closely with the MEP consultants and MEP contractors during the build process
BIM Services provided: Containment, Plumbing, Drainage, HVAC, Lighting, Small power & Data, heating, Cooling, Fire Alarm, Fire fighting. Metro tunnel and building structure
Duration: BIM Modelling 2 Months turnaround.
